135 degrees (or
custom) post.
Used
for bay windows.
Adds a horizontal bar to the shutter.
Height of the first split.
Height of the second split.
Adds a horizontal bar to the shutter.
Adds a horizontal bar to the shutter when
the height is bigger than 1800mm.
Toggle frame visibility on each side.
You can specify individually per each frame side, if you require to build up
the
frame or not.
You can specify individually per each frame side, if you require to build up
the
frame or not.
Write custom notes about the frame.
Whether
you want your shutter to come with the screw holes predrilled from the
factory
directly.
Battens are accessories that come in a cuboid
(hexahedron)
shape and allow for a better mounting or positioniong of the shutter over
the
window during the installation process. Battens come in wood and are priced
per
cubic metre.
Beadings are accessories usually used for covering any
possible leftover gaps between the shutter frame and the wall/recess where
the
shutter has been installed. It's main role is to block any light that might
come
through. Beadings are priced per linear metre.
A filling triangle is an accessory that can be used usually for
bay window configurations where panels are done individually
without the use of Bay Posts.
Filling triangles are made of wood and priced per cubic metre.

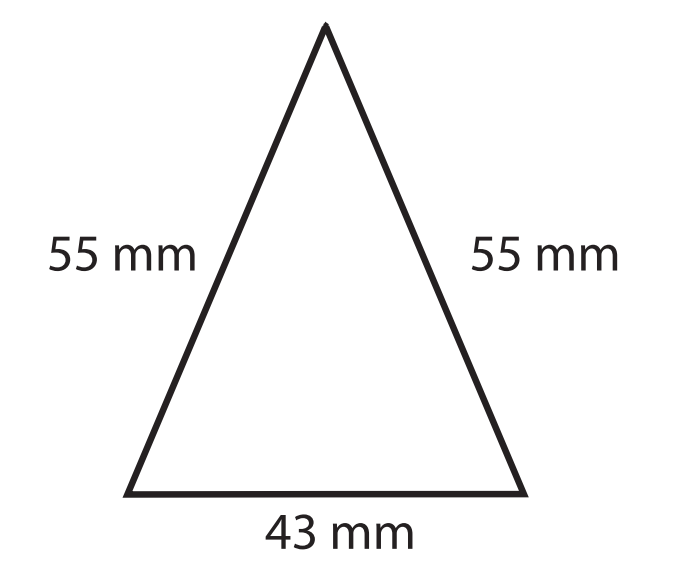

1. Triangle for Bay Post (135°)
Used in angled bay window setups (135°). Dimensions:
Side A: 55 mm, Side B: 55 mm, Base (C): 43 mm, Height (H):
[Shutter Height] mm

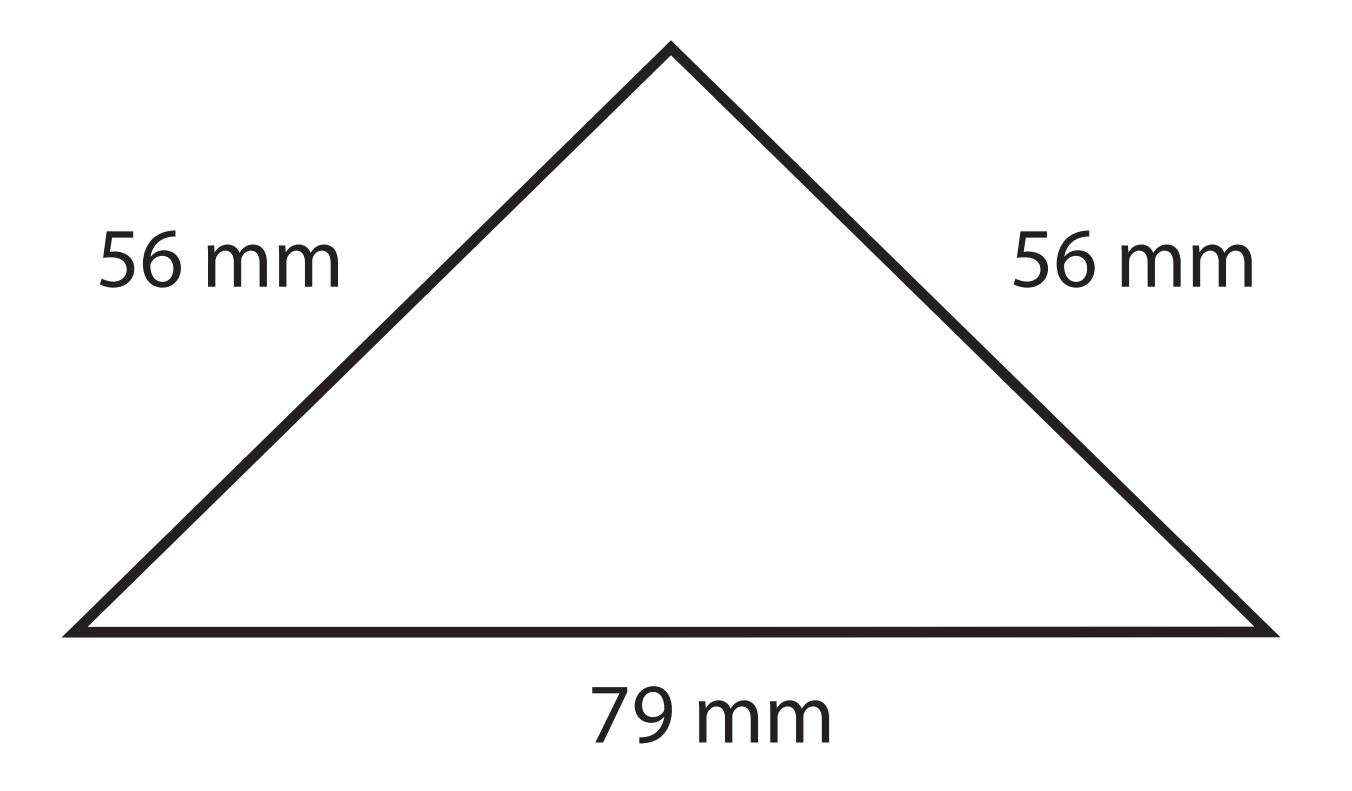

2. Triangle for Corner Post (90°)
Used in L-shaped or 90° corner configurations. Dimensions:
Side A: 56 mm, Side B: 56 mm, Base (C): 79 mm, Height (H):
[Shutter Height] mm
Note for Mimeo Europe:
For the Mimeo Europe product, filling triangles are not
priced by volume but instead by their height
(longness), which matches the shutter
height.
The system uses this height to calculate the price in linear
meters (LM):
Shutter Height → converted to meters → rounded up to the nearest
0.5m (minimum 1.0m).
Pricing:
• £10 per LM for standard preset triangles (Bay or Corner)
• £20 per LM for custom triangle shapes
Example:
If the shutter height is 1200 mm (1.2 m), it will be rounded to
1.5 LM:
• Preset triangle → £15 + VAT
• Custom triangle → £30 + VAT
With some windows, the original handles might interfere
with
the tilting of the lamelas because the handles may extrude outwards by a
lot. To
avoid the lamellas hitting the window handles, one option is to change the
handles entirely with slimmer ones.
Pass on any other detail
regarding the shutter configured, which might not have been specified via
the
previous dedicated features within the configurator.
Color of the shutters.
Color and material of the
hinges
Custom color
Price: 0.00
£
Price: 0.00
£
Surface: 0.00
m2
#05333a
